Description

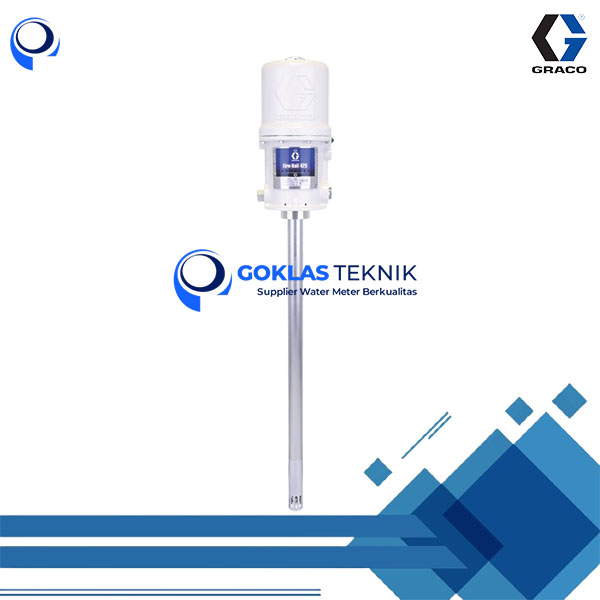

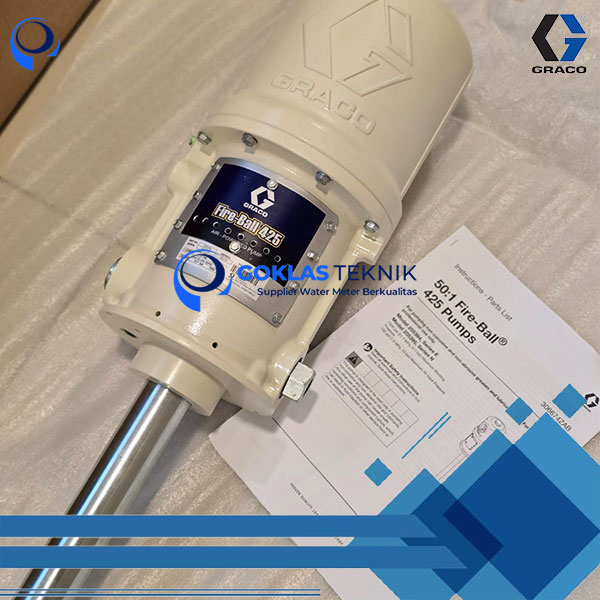

Graco Fire-Ball 425 (nomor komponen 205395) adalahPompa gemuk dengan rasio 50:1 yang dirancang untuk pengeluaran gemuk bervolume tinggi dari drum 400 lb (180 kg), dilengkapi motor
udara tahan lama untuk tenaga dan keandalan, konstruksi kokoh dengan komponen tahan korosi, katup poppet non-logam untuk penyegelan positif dengan udara kotor, dan desain pompa in-line
umur panjang yang memaksimalkan masa pakai segel untuk aplikasi yang menuntut.
Technical Specification :
Air Inlet Size (in) : 0.5
Air Inlet Thread Gender : Female
Air Inlet Thread Type : NPT
Air Motor Effective Diameter (in) : 4.25
Application : Industrial
Compatible Material : Grease
Construction : CS, Steel, Brass, Aluminum, Leather
Cycles Per Gallon : 110
Fluid Inlet Type : Slotted
Fluid Outlet Size (in) : 3/8
Fluid Outlet Thread Gender : Female
Fluid Outlet Thread Type : NPT
For Use With : Grease
Maximum Air Inlet Pressure (psi) : 150
Maximum Flow Rate (GPM) : 0.5
Maximum Working Pressure (MPa) : 51.7
Maximum Working Pressure (psi) : 7500
Model : Fire-Ball
Power Type : Pneumatic
Pump Ratio : 50:1
Seal Material : Nitrile Rubber
Series : 425
Sound Power Level (dB(A)) : 94.6
Sound Pressure Level (dB(A)) : 80.9
Throat Seal Type : Wiper
Type : Pneumatic Piston Pump
Weight (lb) : 34
