Description

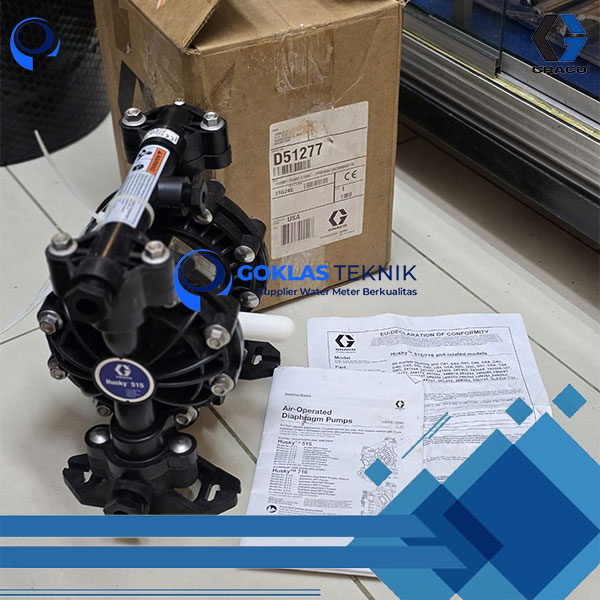

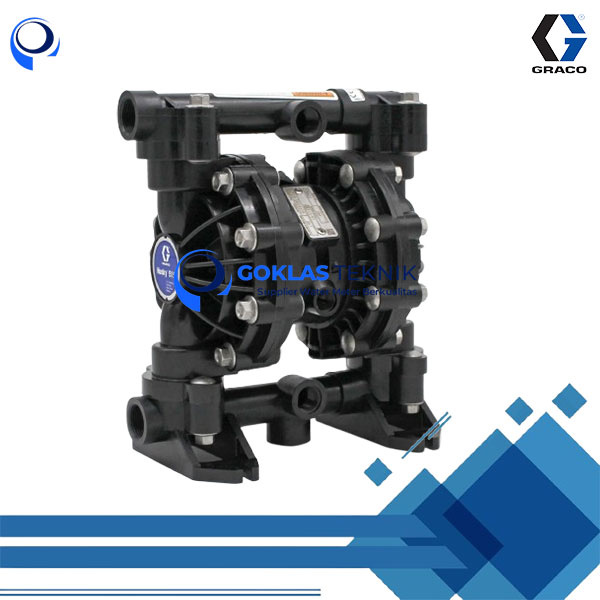

Graco 515 D51277 memiliki fiturkatup udara bebas stall, denyut rendah untuk pengoperasian yang lancar, penutup cairan baut untuk menghilangkan kebocoran, kinerja yang tenang
(di bawah 85 dBa) dengan kemampuan knalpot jarak jauh opsional, opsi porting tengah dan ujung, komponen yang mudah diservis seperti katup udara dan pemeriksaan bola, dan kemampuan untuk
menangani berbagai cairan dan aplikasi Ia dapat mengalirkan hingga 15 GPM dan beroperasi pada tekanan sekecil 20 psi
Technical Specification :
Air Exhaust Port Size (in) : 3/8
Air Exhaust Port Thread Gender : Female
Air Exhaust Port Thread Type : NPT
Air Inlet Size (in) : 1/4
Air Inlet Thread Gender : Female
Air Inlet Thread Type : NPT
Application : Industrial
Ball Material : Buna-N
Center Section Material : Polypropylene
Compatible Material : Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water – Wastewater Treatment, Ink
Compressor Required : Yes
Connection Type : Threaded
Diaphragm Compatible Material : Buna
Diaphragm Material : Buna-N
Fluid Inlet Size (in) : 1/2
Fluid Inlet Thread Gender : Female
Fluid Inlet Thread Type : NPT
Fluid Outlet Size (in) : 1/2
Fluid Outlet Thread Gender : Female
Fluid Outlet Thread Type : NPT
Fluid Section Material : Acetal
Manifold Configuration : Center Port
Manifold O-Ring Material : PTFE
Material : Acetal
Maximum Air Consumption (SCFM) : 28
Maximum Air Pressure (MPa) : 0.7
Maximum Air Pressure (psi) : 100
Maximum Cycle Rate (CPM) : 400
Maximum Flow Rate (GPM) : 15
Maximum Fluid Pressure (MPa) : 0.7
Maximum Fluid Pressure (psi) : 100
Maximum Operating Temperature (°F) : 180
Maximum Solid Size (in) : 0.09375
Minimum Operating Temperature (°F) : 40
Model : Husky
Overall Height (in) : 10.63
Power Source : Air
Seat Material : Acetal
Series : 515
Standards Met : ATEX, CE
Type : Pneumatic Diaphragm Pump
Weight (lb) : 7.8
